Best Level Machine Price in Bangladesh: Topcon DL-501 Electronic Digital Level

In the construction and engineering landscape of Bangladesh, the demand for precision has reached new heights. With mega-projects like the Padma Bridge, Metro Rail, and various high-rise infrastructures, traditional manual levels are often replaced by digital technology to eliminate human error. If you are looking for the absolute best level machine price in Bangladesh, specifically for high-accuracy tasks, the Topcon DL-501 Electronic Digital Level is the pinnacle of Japanese engineering.

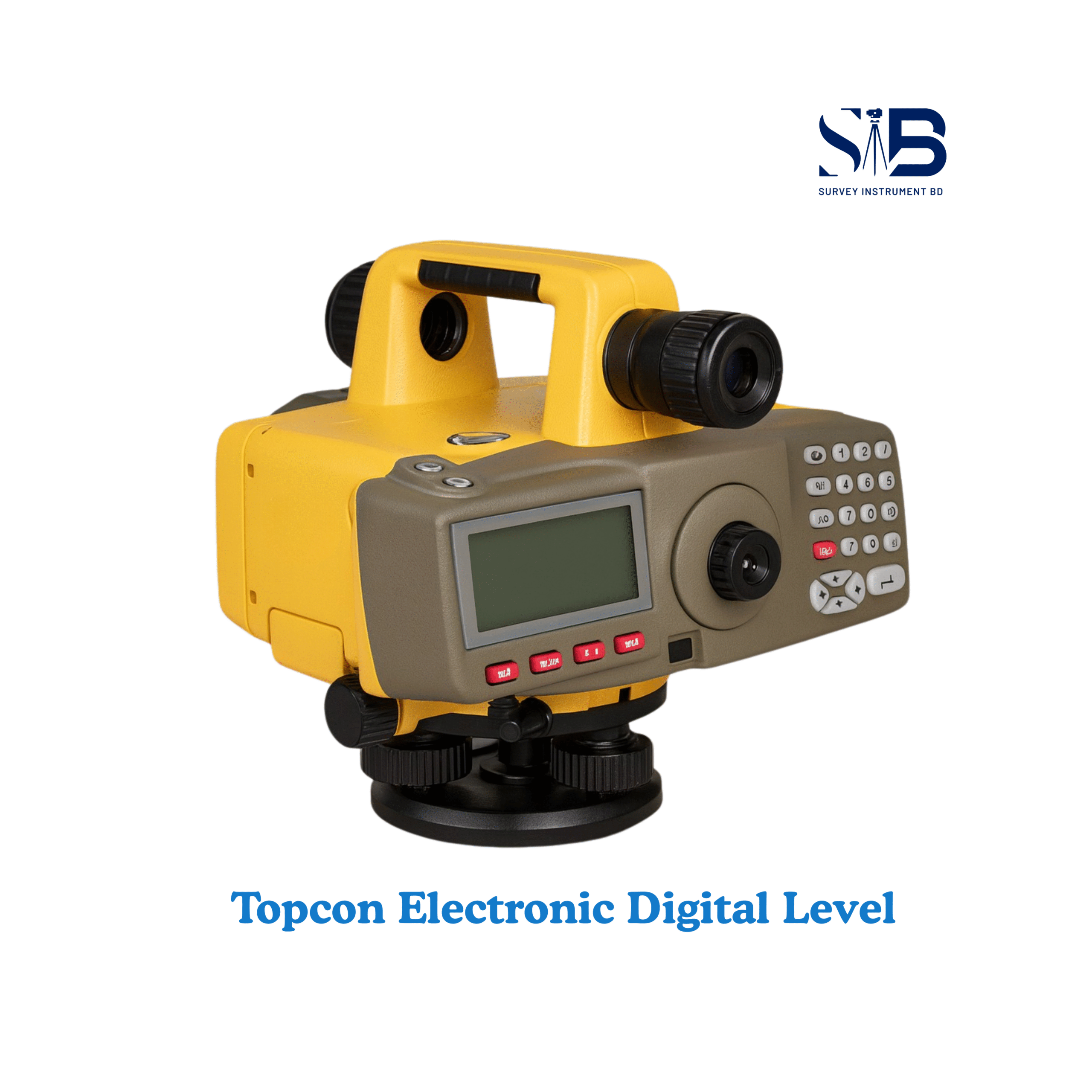

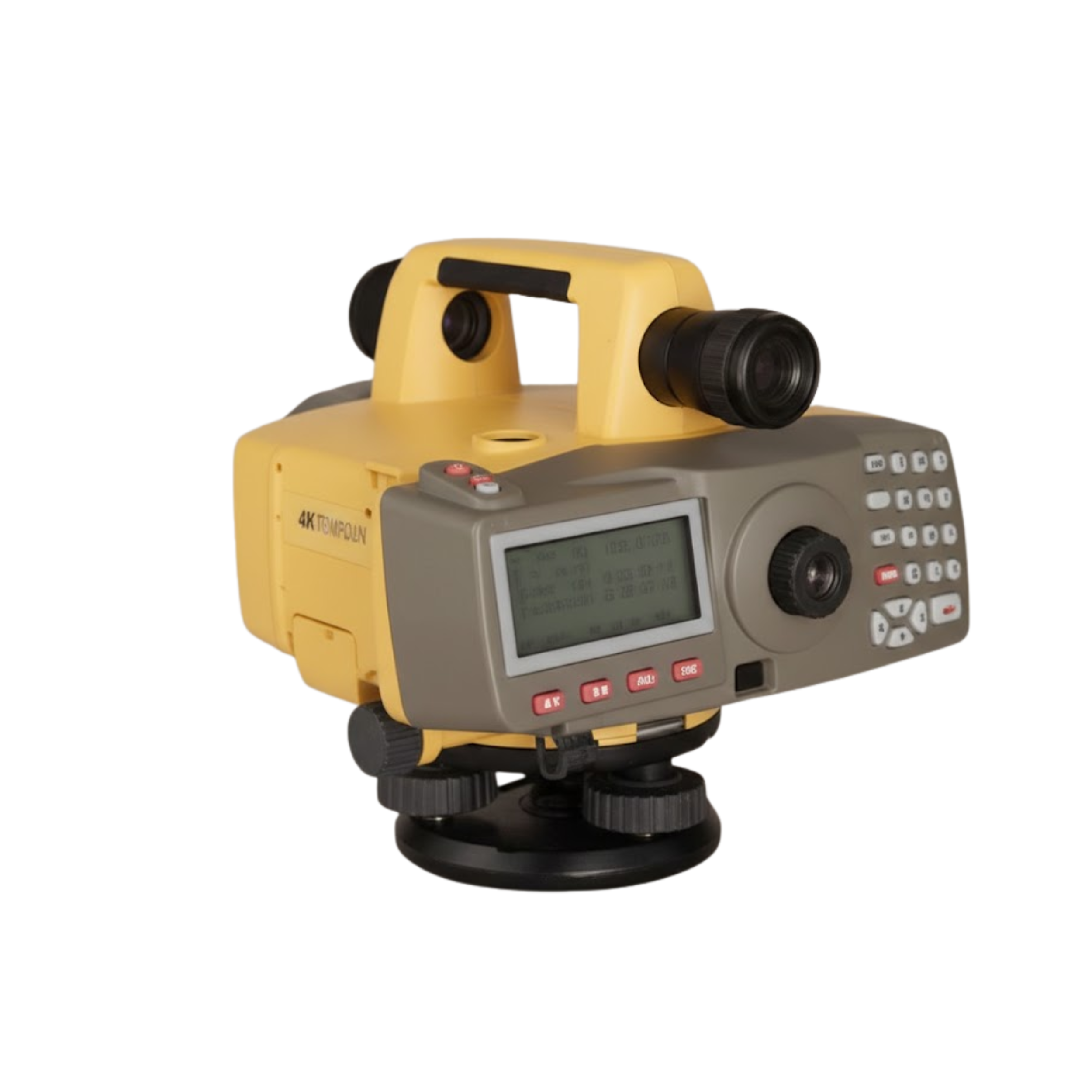

What is the Topcon DL-501?

The Topcon DL-501 is a high-end electronic digital level that provides sub-millimeter accuracy for the most demanding surveying tasks. Unlike standard auto levels, where the surveyor reads a physical staff, the DL-501 uses an electronic sensor to read a specialized barcode staff (RAB-Code). This process ensures that measurements are recorded digitally, accurately, and instantly.

Why It’s Considered the Best Level Machine in BD

For engineers in Bangladesh, the DL-501 is more than just a tool; it’s a guarantee of quality. It is widely used for:

• Monitoring structural deformation.

• Precise land subsidence monitoring.

• First and second-order leveling.

• Major bridge and tunnel construction.

---

Technical Specifications: The Power Behind the Precision

To understand why this machine holds such value, we must look at its core capabilities. When evaluating the best level machine price in Bangladesh, the specifications of the DL-501 often justify its premium positioning.

Feature	Specification
Height Accuracy	0.2mm (with Invar Staff)
Distance Accuracy	$\pm 10mm$ at $10m$
Magnification	$32x$
Measuring Time	Less than $2.5$ seconds
Internal Memory	$10,000$ Points
Dust/Water Protection	IP54 Rated
Data Export	USB and RS-232C

Key Technologies included:

1. Wave-and-Read Technology: A revolutionary feature that allows the staff operator to wave the barcode staff back and forth. The DL-501 automatically tracks the staff and takes the reading at the exact vertical point.

2. Auto Focus: The “Advanced” model features auto-focus, which saves up to 40% of the measurement time compared to manual focus levels.

3. Remote Trigger: To prevent the slight vibrations caused by pressing the measurement button, the DL-501 supports a wireless remote trigger—essential for 0.2mm precision work.

---

Best Level Machine Price in Bangladesh: 2026 Market Guide

The price of a level machine in Bangladesh varies significantly depending on whether you are buying a manual auto level or a high-precision digital level. While a standard Topcon AT-B4A manual level might cost between ৳30,000 and ৳35,000, the DL-501 is a sophisticated computer-integrated device.

Estimated Price Breakdown (2026 Update)

Category	Typical Models	Estimated Price Range (BDT)
Entry Level Auto Level	Topcon AT-B4A	৳30,000 – ৳36,000
Professional Auto Level	Topcon AT-B2	৳48,000 – ৳55,000
Standard Digital Level	Topcon DL-502/503	৳1,80,000 – ৳2,50,000
High-Precision Digital	Topcon DL-501	৳7,50,000 – ৳8,50,000

Disclaimer: Prices are subject to change based on the USD exchange rate and availability. The price of the DL-501 often includes high-precision Invar staffs, which are necessary to achieve 0.2mm accuracy.

---

Why Should You Invest in Digital Leveling?

Many contractors in Bangladesh ask if the higher–level machine price is worth it. Here is why the answer is a resounding “Yes”:

1. Eliminating Human Error

In a manual level, two different surveyors might see two different readings on the staff. The DL-501 eliminates this subjectivity. The digital sensor sees the barcode and provides a fixed, unchangeable value.

2. Digital Data Management

No more writing in field books. The DL-501 stores up to 10,000 points in its internal memory. You can simply plug in a USB drive or connect it to your PC to export the data into CSV or Excel format, ready for your reports.

3. Superior Efficiency in Low Light

Construction sites in Bangladesh often work early in the morning or late into the evening. The DL-501 can read the staff in lighting conditions as low as 20 lux. This ensures your project never stops due to poor visibility.

---

Where to Buy and After-Sales Support?

When you are investing a significant amount to get the best level machine price in Bangladesh, you must ensure the authenticity of the product. Survey Instrument BD (authorized Topcon distributor) provides the following benefits:

1. Genuine Warranty: 1-year official manufacturer warranty.

2. Professional Calibration: Every unit is calibrated at our Dhaka service center before delivery.

3. Free Training: We provide comprehensive on-site or in-house training for your engineering team.

4. Accessories: We stock original Topcon Invar staffs, heavy-duty tripods, and BDC70 batteries.

Conclusion

The Topcon DL-501 is not just a level machine; it is a high-precision digital workstation. While the initial investment is higher than manual models, its speed, accuracy, and data recording capabilities make it the most cost-effective choice for modern engineering projects.

Searching for the Best Level Machine Price in Bangladesh? Contact us today for a personalized quotation and a live demonstration of the DL-501’s incredible capabilities.
